Coal Sizer
General Details

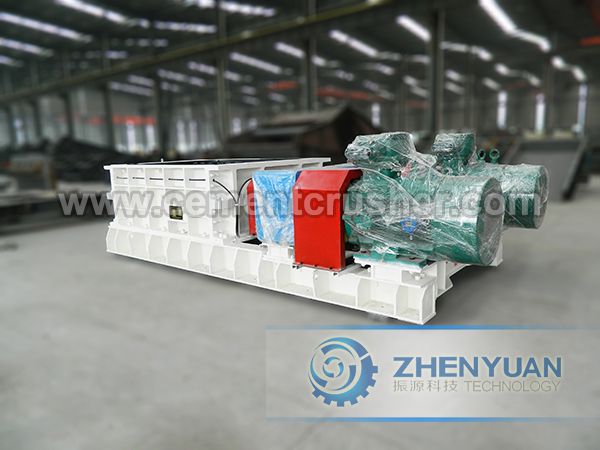

Coal Sizer
Applications:
Zhenyuan Coal Sizer mainly crushes raw coal mine from opencast working, coal preparation plant and thermal power plant, etc. 2PLF Series Coal Sizer is composed of motor, safe coupling, gear reducer, gear coupling, frame, tooth roller and tooth roller cover.

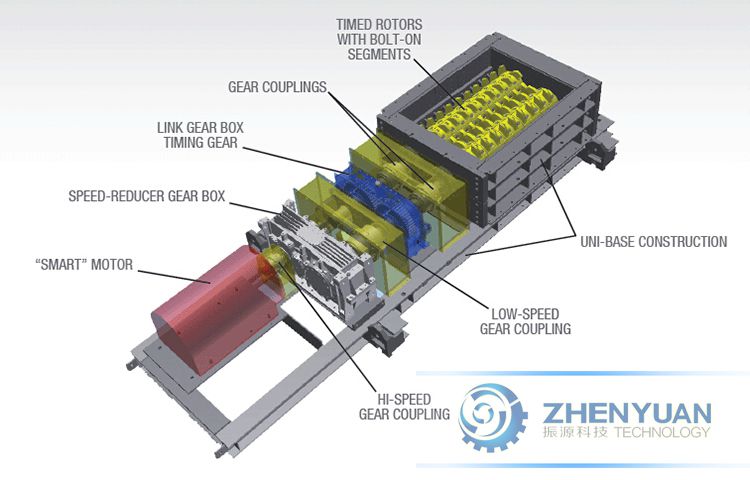

Structure Drawing:
Features:
- Strong crusher power and high crushing ratio, without over-crushed phenomenon
- Crushing grades have coarse and medium crushing
- High strength alloy steel shafts
- Replaceable wear part design, crusher teeth can be replaced quickly
- Unique tooth designs to allow maximum utilization of the materials
- Grease lubricated bearings usually fed by automated system
If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.
Technical Data
Coal Sizer Technical Parameters:
| 140 Series Coal Sizer for Coarse Crushing | ||||
| Model&Specification | 2PLF-140/250 | 2PLF-140/300 | 2PLF-140/350 | 2PLF-140/400 |
| Input Size(mm) | ≤1600 | ≤1600 | ≤1600 | ≤1600 |
| Output Size(mm) | ≤400 | ≤400 | ≤400 | ≤400 |
| Capacity(t/h) | ≤6000 | ≤7000 | ≤8500 | ≤10000 |
| 120 Series Coal Sizer for Coarse Crushing | ||||
| Model&Specification | 2PLF-120/150 | 2PLF-120/200 | 2PLF-120/250 | 2PLF-120/300 |
| Input Size(mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Output Size(mm) | ≤300 | ≤300 | ≤300 | ≤300 |
| Capacity(t/h) | ≤3000 | ≤4000 | ≤5000 | ≤6000 |
| 100 Series Coal Sizer for Coarse Crushing | ||||
| Model&Specification | 2PLF-100/150 | 2PLF-100/200 | 2PLF-100/250 | 2PLF-100/300 |
| Input Size(mm) | ≤1200 | ≤1200 | ≤1200 | ≤1200 |
| Output Size(mm) | ≤300 | ≤300 | ≤300 | ≤300 |
| Capacity(t/h) | ≤2000 | ≤3000 | ≤4000 | ≤5000 |
| 80 Series Coal Sizer for Medium Crushing | ||||
| Model&Specification | 2PLF-80/150 | 2PLF-80/200 | 2PLF-80/250 | 2PLF-80/300 |
| Input Size(mm) | ≤300 | ≤300 | ≤300 | ≤300 |
| Output Size(mm) | 50-150 | 50-150 | 50-150 | 50-150 |
| Capacity(t/h) | 300-700 | 400-1000 | 600-1200 | 800-1500 |

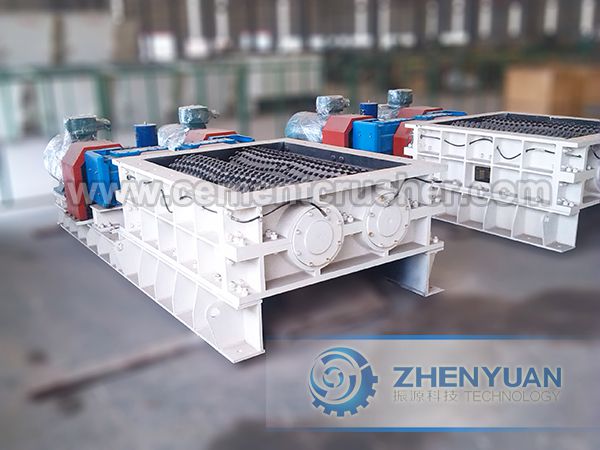

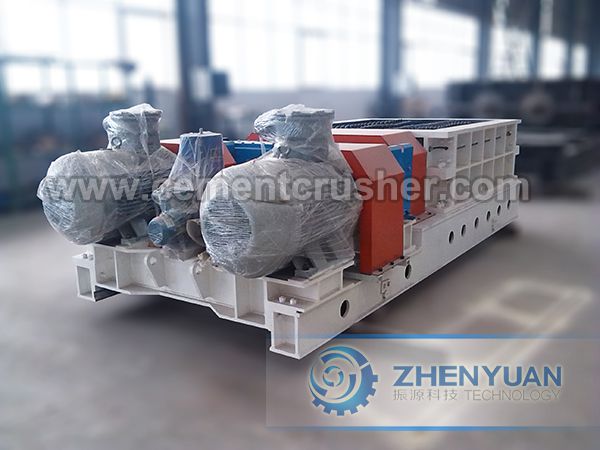

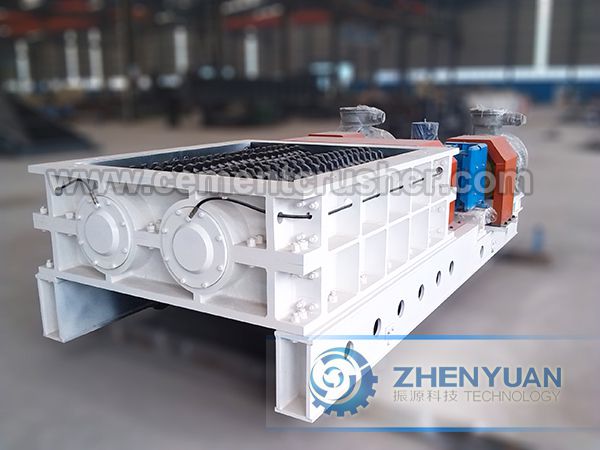

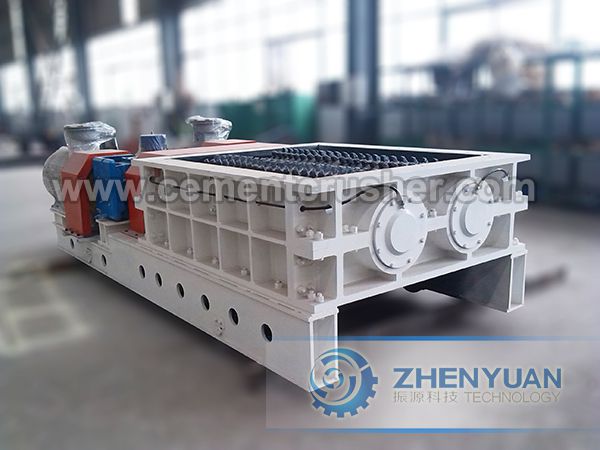

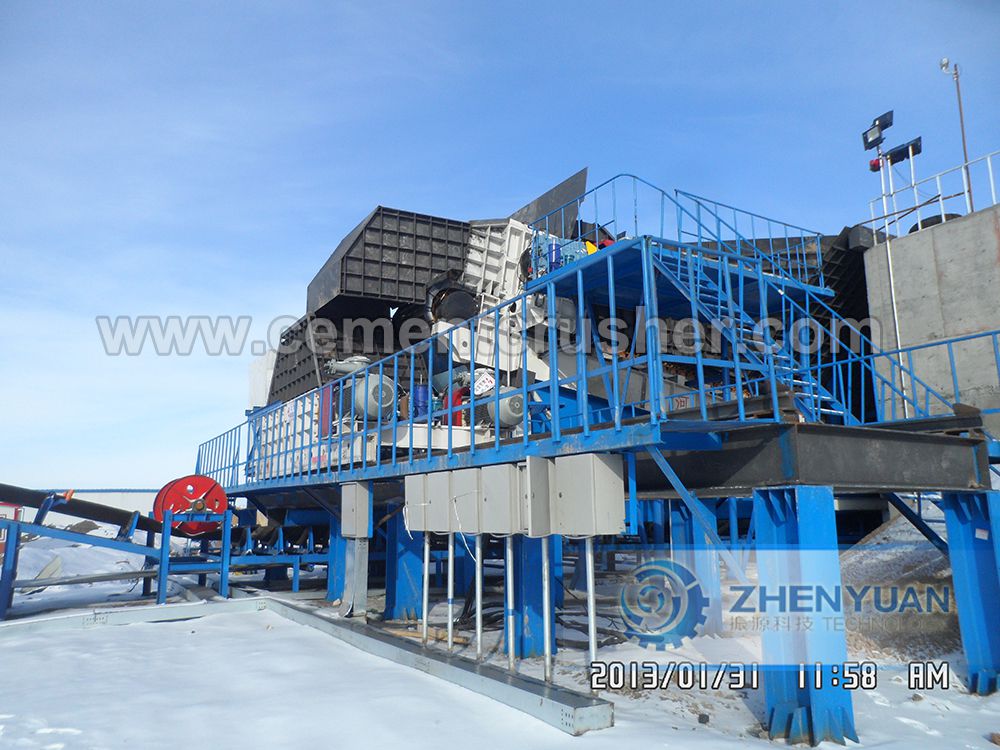

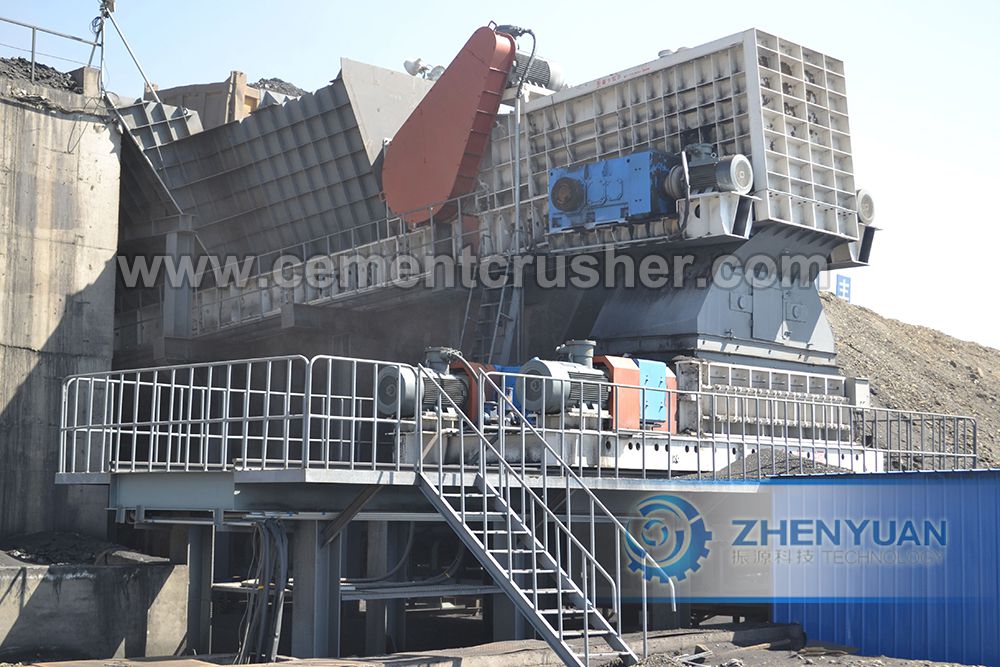

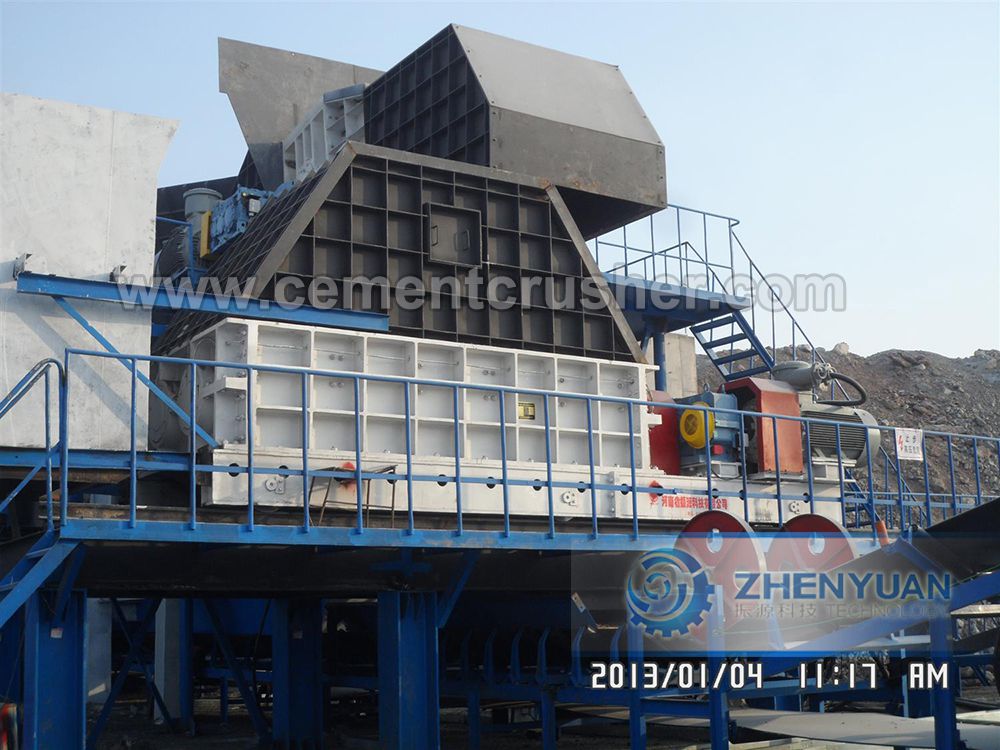

More Pictures
