PCL Vertical Shaft Impact Crusher

General Details

PCL Vertical Shaft Impact Crusher

PCL vertical shaft impact crusher with features of high-efficiency and energy-saving, which is designed by our professional engineers, absorbing the advanced techniques of the same products, plays an important role in crushing machinery. This series product is widely used in crushing various kind of mine, cement, fire-proof materials, bauxite, corundum, glass raw material, building sand, stone material, and other metallurgical slag. It is especially efficient to crush harder materials, such as carborundum, corundum, and magnesium sang, better in capacity than that of other crusher.



Features:
  1. Unique bearing installation and advanced spindle design, which make the machine has the characteristics of heavy load and high speed with functions of finely and coarse grinding.
  2. Using high-quality wear-resistant material at home and abroad, the working life is longer. A few made of special hard wear-resistant material, small volume, light weight, easy to replace.
  3. Products are in the cube, big bulk density, iron pollution is small., can uses as stone plastic machine.





send inquiry

If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.

Your Name (required)

Your Email (required)

Subject

Your Message

Technical Data
PCL Sand Making Machine
Model Impeller Rotation Speed(RPM) Max.Feeding Size (mm) Motor Model Capacity (t/h) Motor Power (KW) Dimension                               (mm)
PCL-600 2000-2600 26 Y200L1-2 12-30 2Х30 2800Х1460Х2030
PCL-600B 2000-2600 26 Y200L2-2 12-50 2Х37 2800Х1460Х2030
PCL-750 1500-2500 35 Y225M-4 26-65 2Х45 3300Х1800Х2440
PCL-900 1300-1700 35 Y250M-4 55-120 2Х75 3750Х2120Х2660
PCL-900B 1000-1450 40 Y280M-4 60-150 2Х90 3750Х2120Х2660
PCL-1050 1000-1700 40 Y315S-4 100-160 2Х110 4480Х2450Х2906
PCL-1250 950-1200 40 Y315M-4 100-260 2Х132 4563Х2650Х3176
PCL-1350 800-1200 60 Y315L2-4 160-360 2Х200 5340Х2940Х3650
More Pictures

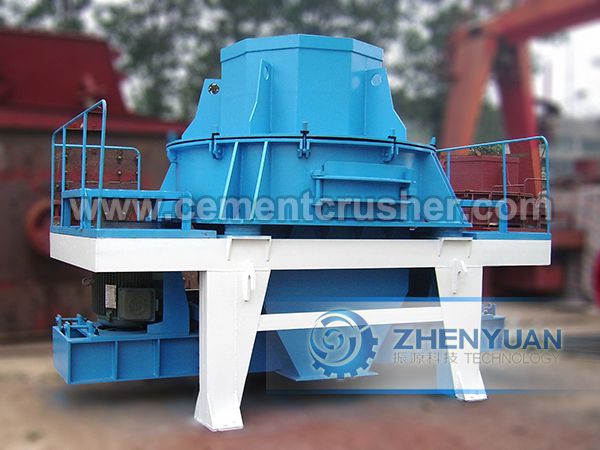

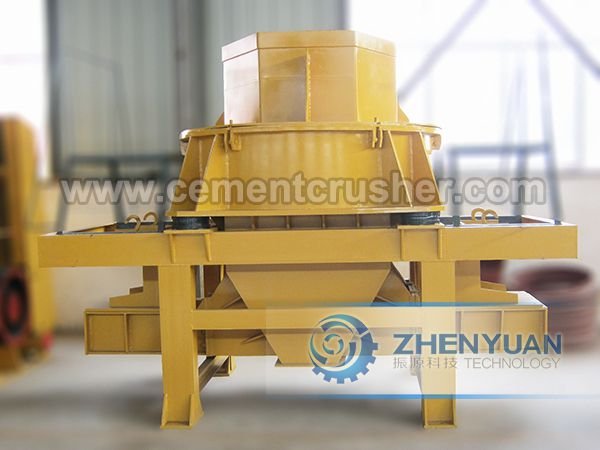

pcl sand making machine

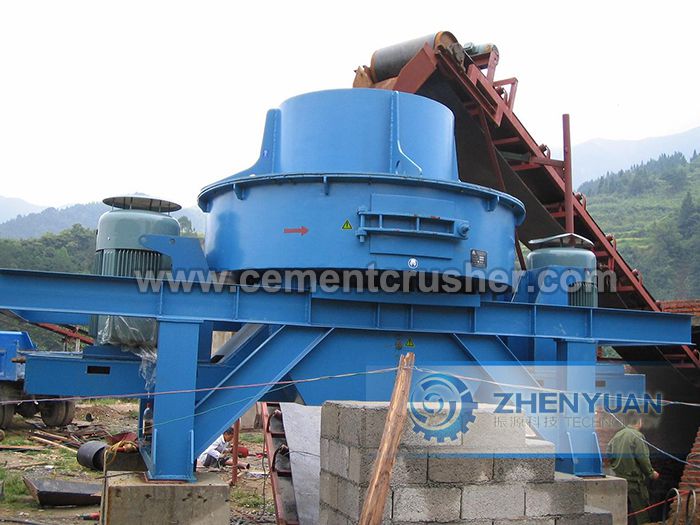

pcl vertical shaft impact crusher
